Mode: DIY hardware files
Custom camera mods.
Precision CAD files and build guides for Blackmagic Pocket cinema cameras: tilt screen kits, DIY OLPF, parts sourcing. Cut-ready for CNC and high-temp printing.
Catalog
Digital packages containing everything needed to manufacture and assemble these custom camera modifications.

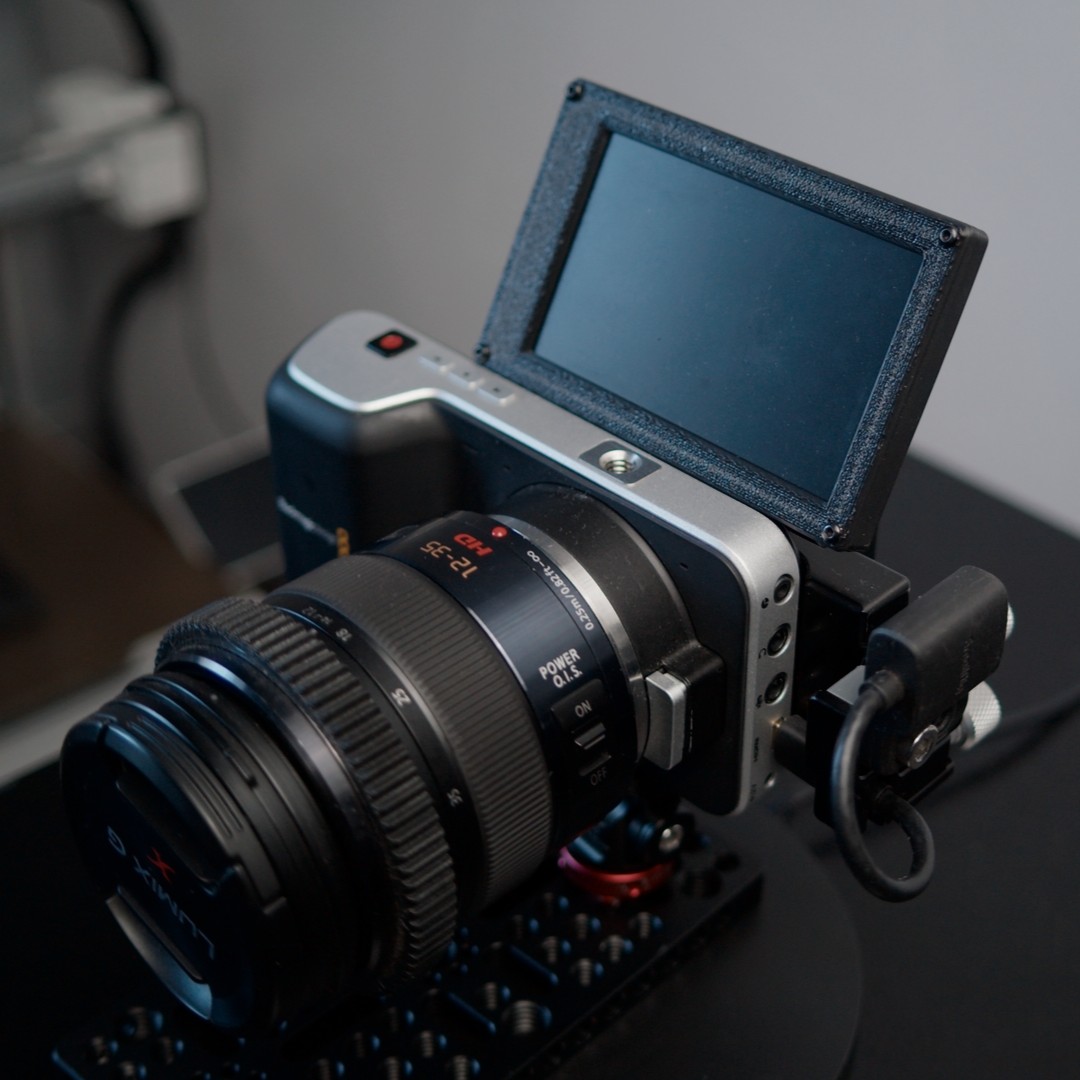

BMPCC (OG) Tilt Screen Modification files [Un-Caged Version]

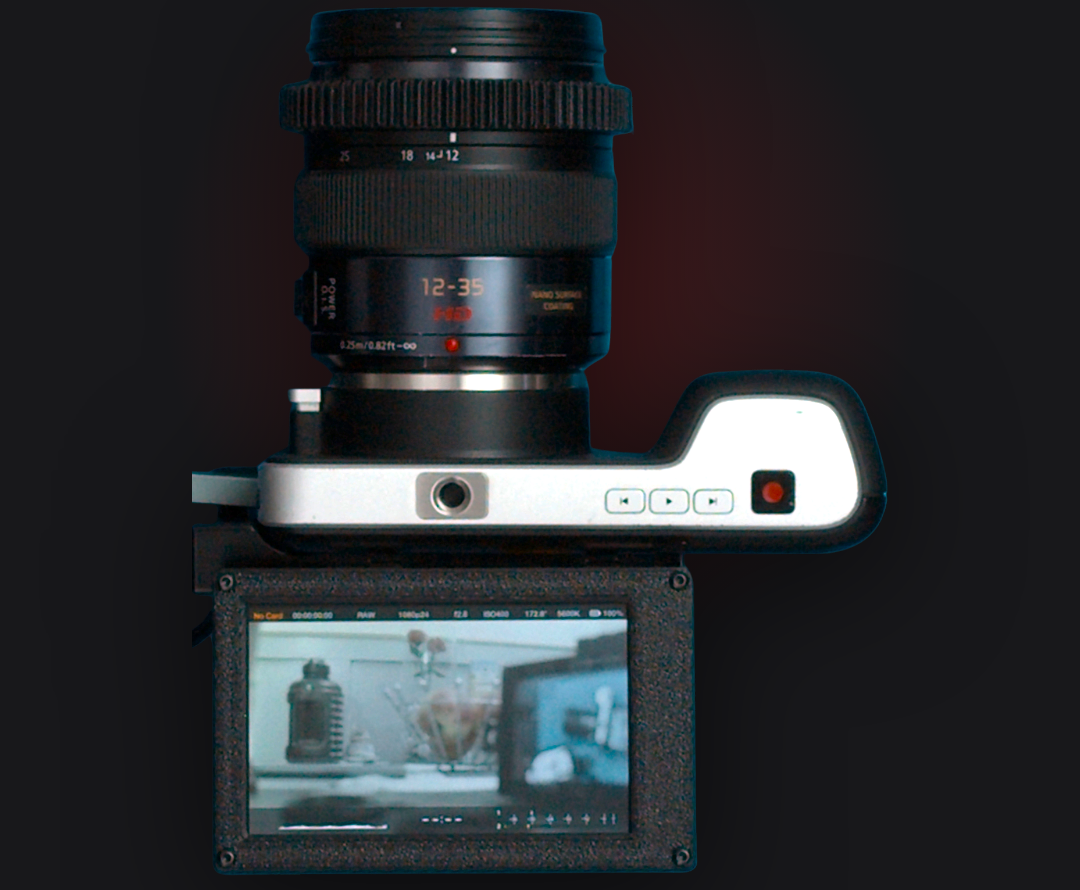

The BMPCC OG screen is fixed. This mod adds a tilting LCD housing built from a 3D-printed enclosure and a CNC machined 6061 aluminum backplate. The backplate also pulls heat away from the camera body and, paired with the Ulanzi CU01 cooler, keeps temperatures low enough to shoot without worrying about overheating.
OLPF Alternative
Moiré shows up when fine detail, fabric, brick, window screens; conflicts with the pixel grid on your sensor. Files and documentation to build your own Optical Low-Pass Filter and install it on the OG sensor. Two pieces of optical glass, fused into one unit by you, with no compromise to image quality.

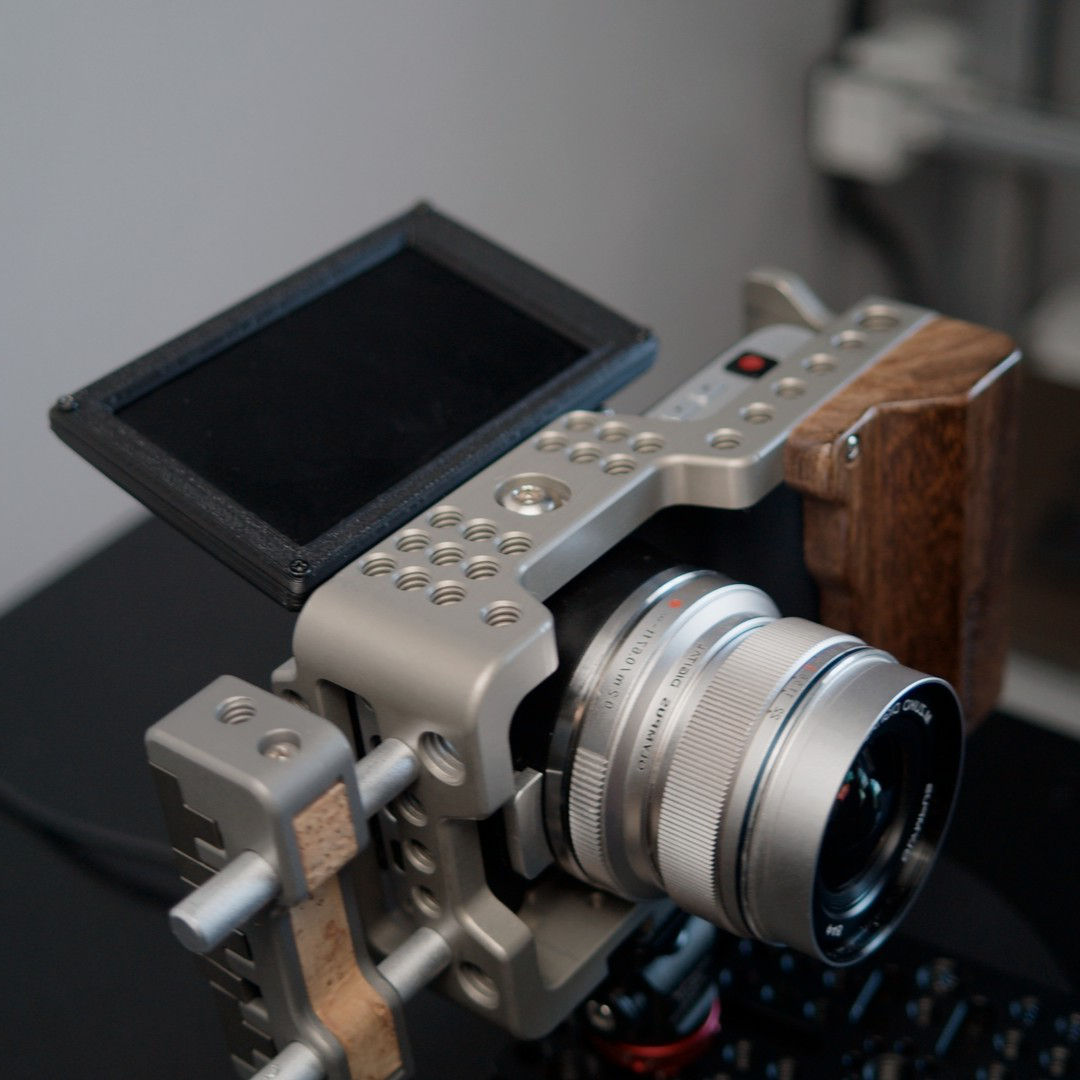

BMPCC (OG) Tilt Screen Modification files [Caged Version]
Sized to fit and mount inside your OG's cage. Same tilting LCD housing and backplate design as the cageless build, refit for cage mounting. Although, it's tilt angle is limited due to the cage and cannot be seen from the front.
BMPCC 4K OLPF
Moiré is a known issue with this camera. This modification includes files and links to the source for optical glass so you can fuse them together and have your own OLPF. It cuts the moiré and colour-shifted crawling that tight fabric, brick, and window screens produce on the sensor.
Process sequence
Go from purchase to a finished, working modification with professional-grade files and guides.
STEP 01Acquire
Purchase Files
Secure checkout via Gumroad. Instantly receive the CAD package in your inbox, no shipping, no wait.
STEP 02Manufacture
3D Print/CNC
Print in-house or use a professional service. Select projects require specialised materials or aluminium CNC machining.
STEP 03Parts List
Source the Parts
Use the included parts list to grab the exact ribbon cables, fasteners and brass inserts: part numbers listed, nothing to guess.
STEP 04Assemble
Assembly Guide
Follow the video and PDF through teardown, wiring and reassembly. Work each stage, tick the steps, clear the checkpoint, move on.
CNC ready
The STEP files are set up to work smoothly with commercial CNC services. No guesswork.
High-temp rated
The housing shapes are made to be printed in ABS, PETG, or Polycarbonate so they don't warp near the hot camera body.
Full walkthrough
Included video link and PDF guide take you through the teardown, wiring, and reassembly step-by-step.
Stay in the loop.
New mods, updates, and drops, straight to your inbox.
Drop alerts
Mod drops and updates.
New mods and updates to current mods will be sent. I don't like spam so you won't get any either.
Disclaimer
Modifying your camera carries real risks, including the potential for permanent damage to your device. By purchasing and using these files, you accept full responsibility for the build process and any outcomes. I am not liable for any damage done to your equipment. Read full disclaimer.
